Bel
| Part Number | 147-0801-201 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN 2.4MM EDGE LAUNCH PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1167 pcs | Data sheet | 147-0801-201.pdf |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | J10449 |
| Operating Temperature | -55°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

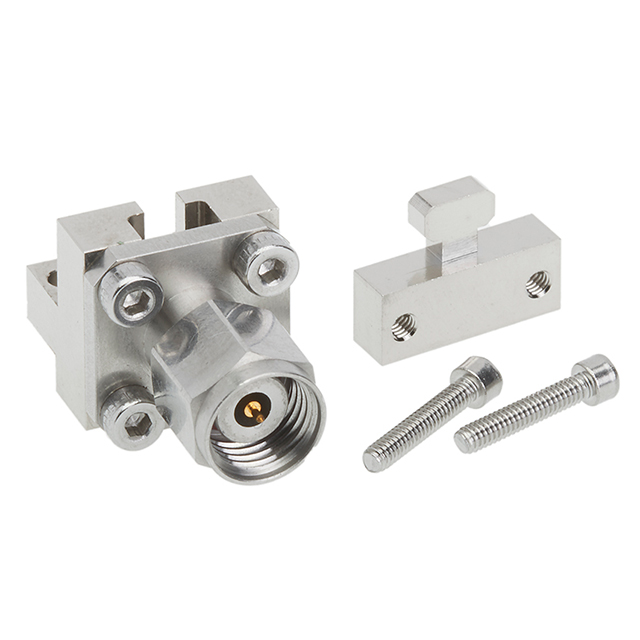

| Includes | 5 pcs - 1 Connector, 2 Lockwashers, 2 Screws | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 50GHz |
| Features | Mounting Hardware | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | 2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | 2.4mm (APC-2.4, OS-50) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
