B&K Precision

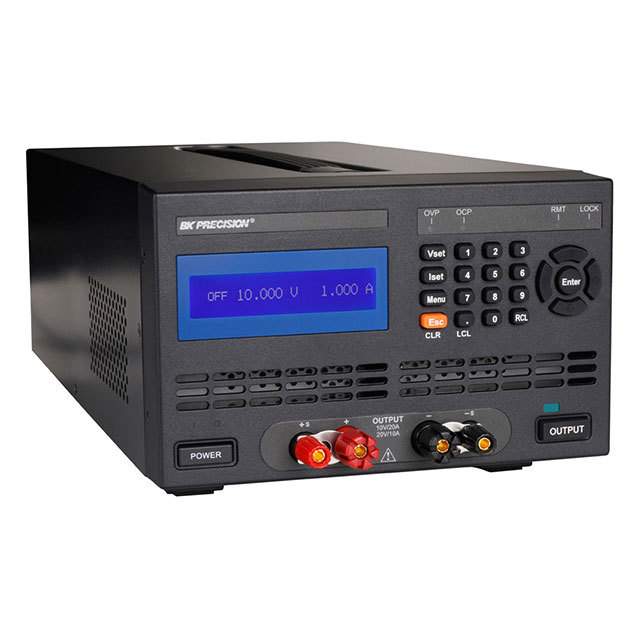

| Part Number | 9182B | Manufacturer | B&K Precision |
|---|---|---|---|
| Description | DC PWR SUPL 0-10V 20A/0-20V 10A | Lead Free Status / RoHS Status | Lead free / RoHS compliant by exemption |
| Quantity Available | 86 pcs | Data sheet | 1.9182B.pdf2.9182B.pdf |
| Weight | 26 lbs (11.8kg) | Voltage Regulation - Load | 0.01% + 1mV |
| Voltage Regulation - Line | 0.01% + 1mV | Voltage - Supply | 115VAC, 230VAC |
| Voltage - Output | 0 ~ 20VDC | Type | Bench (AC to DC) |
| Size / Dimension | 16.339" L x 8.268" W x 5.138" H (415.00mm x 210.00mm x 130.50mm) | Series | 9180B |
| Ripple | 3mV p-p, 0.35mV rms | Power (Watts) | 200W |
| Other Names | BK9182B | Number of Outputs | 1 |
| Number of Characters | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS compliant by exemption |
| Features | Memory, Programmable, Tracking, USB Interface | Display Type | LCD |
| Detailed Description | 0 ~ 20VDC Output Bench (AC to DC) Power Supply LCD 0 ~ 20A Output 200W Features Memory, Programmable, Tracking, USB Interface | Current Regulation - Load | 0.01% + 250µA |
| Current Regulation - Line | 0.01% + 250µA | Current - Output | 0 ~ 20A |
| Accuracy - Voltmeter; Ammeter | 0.05% + 5mV; 0.1% + 5mA |
