HEDS-5500#A02

Avago Technologies (Broadcom Limited)

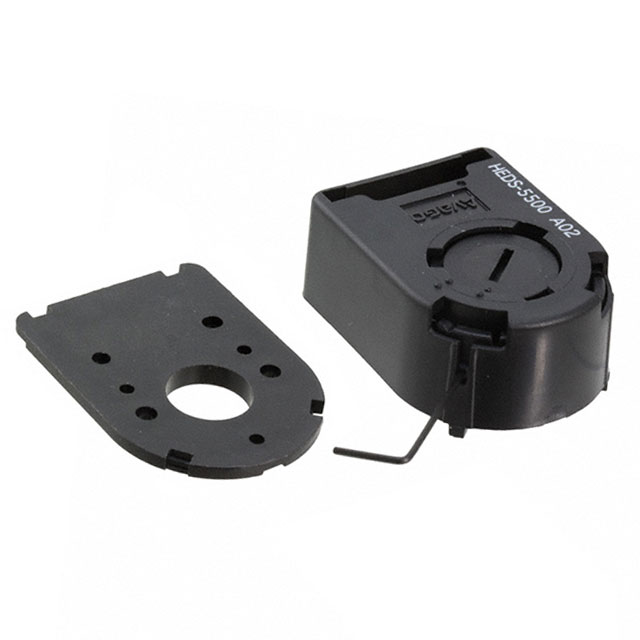

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HEDS-5500#A02
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	ROTARY ENCODER OPTICAL 500PPR
Datasheets:	HEDS-5500#A02.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1455 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1455 pcs

Reference Price (In US Dollars)

1 pcs: $23.744

10 pcs: $20.95

100 pcs: $15.363

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$23.744

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HEDS-5500#A02

Part Number	HEDS-5500#A02	Manufacturer	Avago Technologies (Broadcom Limited)
Description	ROTARY ENCODER OPTICAL 500PPR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1455 pcs	Data sheet	HEDS-5500#A02.pdf
Voltage - Supply	5V	Termination Style	Terminal Pins
Series	HEDS	Rotational Life (Cycles Min)	-
Pulses per Revolution	500	Output Type	Quadrature (Incremental)
Other Names	516-2753 HEDS-5500#A02-ND HEDS5500A02	Orientation	Vertical
Mounting Type	Chassis Mount, Motors	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Encoder Type	Optical	Detent	No
Built in Switch	No	Actuator Type	3mm Open Center
