HEDL-5540#A11

Avago Technologies (Broadcom Limited)

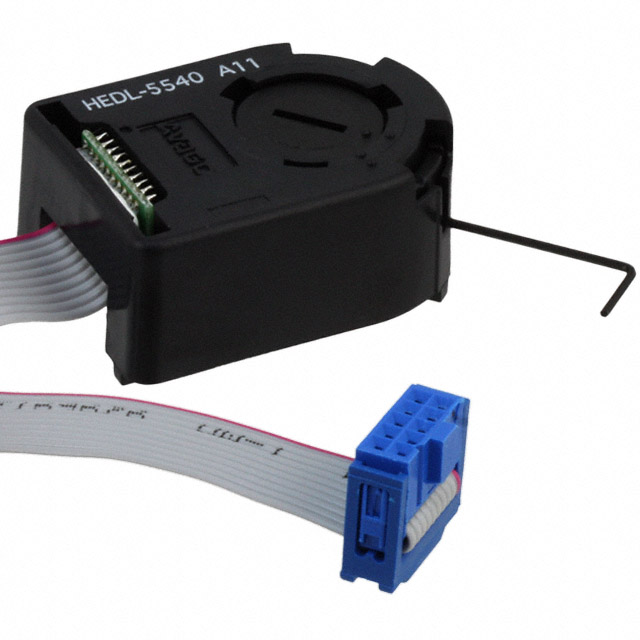

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HEDL-5540#A11
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	ROTARY ENCODER OPTICAL 500PPR
Datasheets:	HEDL-5540#A11.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1390 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1390 pcs

Reference Price (In US Dollars)

1 pcs: $26.049

10 pcs: $22.986

100 pcs: $16.856

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$26.049

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HEDL-5540#A11

Part Number	HEDL-5540#A11	Manufacturer	Avago Technologies (Broadcom Limited)
Description	ROTARY ENCODER OPTICAL 500PPR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1390 pcs	Data sheet	HEDL-5540#A11.pdf
Voltage - Supply	5V	Termination Style	Cable with Connector
Series	HEDL	Rotational Life (Cycles Min)	-
Pulses per Revolution	500	Output Type	Quadrature with Index (Incremental)
Other Names	516-2399 HEDL-5540#A11-ND HEDL5540A11	Orientation	Vertical
Mounting Type	Chassis Mount, Motors	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Encoder Type	Optical	Detent	No
Built in Switch	No	Actuator Type	4mm Open Center
