HDSP-7503

Avago Technologies (Broadcom Limited)

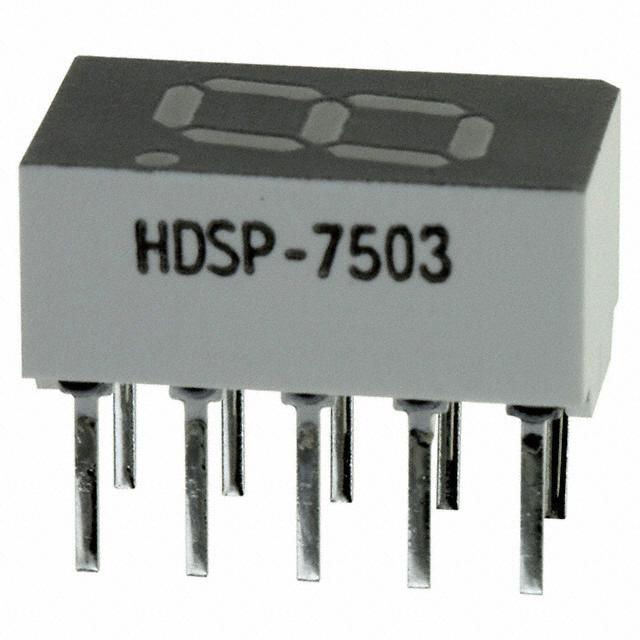

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDSP-7503
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	LED 7-SEG 7.6MM CC HE RED RHD
Datasheets:	HDSP-7503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24326 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24326 pcs

Reference Price (In US Dollars)

1 pcs: $1.203

10 pcs: $1.004

25 pcs: $0.843

200 pcs: $0.722

400 pcs: $0.642

600 pcs: $0.582

1000 pcs: $0.534

2600 pcs: $0.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.203

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDSP-7503

Part Number	HDSP-7503	Manufacturer	Avago Technologies (Broadcom Limited)
Description	LED 7-SEG 7.6MM CC HE RED RHD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24326 pcs	Data sheet	HDSP-7503.pdf
Wavelength - Peak	635nm	Voltage - Forward (Vf) (Typ)	2V
Size / Dimension	0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)	Series	-
Power Dissipation (Max)	105mW	Packaging	Tube
Package / Case	10-DIP (0.200", 5.08mm)	Other Names	516-1203-5 HDSP7503
Number of Characters	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	5.39mcd	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Display Type	7-Segment
Digit/Alpha Size	0.30" (7.62mm)	Detailed Description	Character LED Display Module Red 7-Segment 1 Character Common Cathode 2V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm)
Current - Test	20mA	Common Pin	Common Cathode
Color	Red
