HDSP-3601

Avago Technologies (Broadcom Limited)

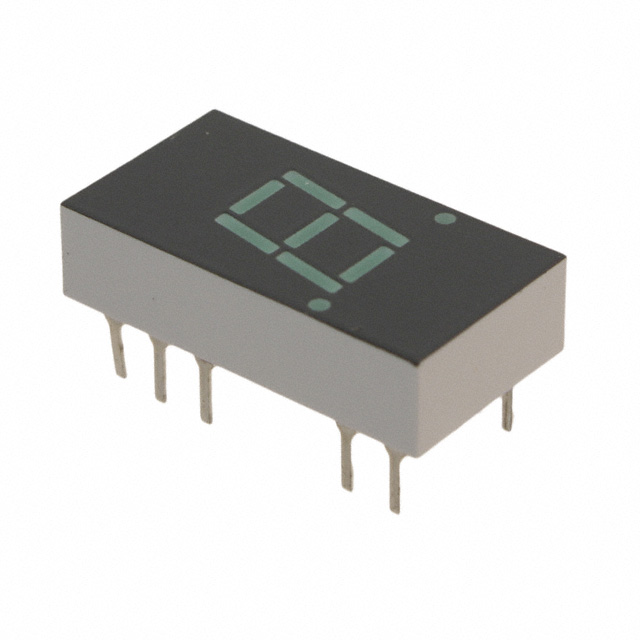

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDSP-3601
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	LED 7-SEG 7.6MM CA GREEN RHD
Datasheets:	HDSP-3601.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29487 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29487 pcs

Reference Price (In US Dollars)

1 pcs: $1.337

10 pcs: $1.113

25 pcs: $0.935

100 pcs: $0.801

250 pcs: $0.712

500 pcs: $0.645

1000 pcs: $0.592

2500 pcs: $0.568

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.337

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDSP-3601

Part Number	HDSP-3601	Manufacturer	Avago Technologies (Broadcom Limited)
Description	LED 7-SEG 7.6MM CA GREEN RHD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29487 pcs	Data sheet	HDSP-3601.pdf
Wavelength - Peak	566nm	Voltage - Forward (Vf) (Typ)	2.1V
Size / Dimension	0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm)	Series	-
Power Dissipation (Max)	105mW	Packaging	Bulk
Package / Case	14-DIP (0.300", 7.62mm), 10 Leads	Other Names	516-1189 516-1189-5 516-1189-5-ND HDSP3601
Number of Characters	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	2.7mcd	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Display Type	7-Segment
Digit/Alpha Size	0.30" (7.62mm)	Detailed Description	Character LED Display Module Green 7-Segment 1 Character Common Anode 2.1V 10mA 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) 14-DIP (0.300", 7.62mm), 10 Leads
Current - Test	10mA	Common Pin	Common Anode
Color	Green
