Avago Technologies (Broadcom Limited)

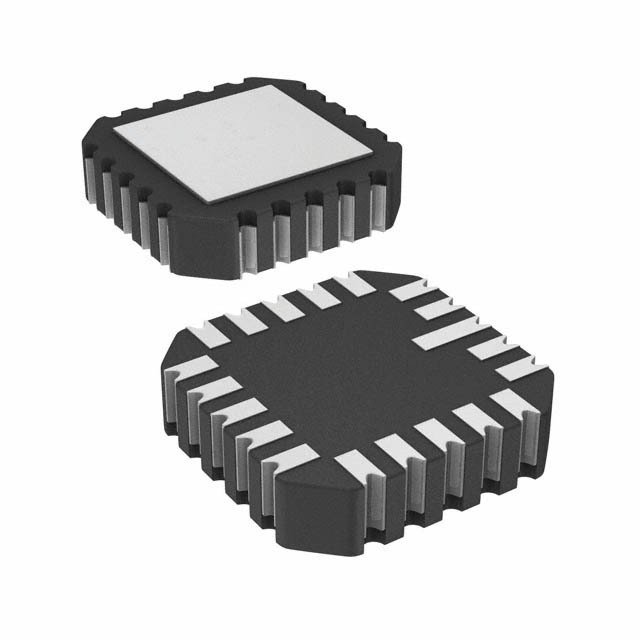

| Part Number | HCPL-6630 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 1.5KV 2CH OPN COL 20LCCC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1197 pcs | Data sheet | HCPL-6630.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 1500VDC |
| Voltage - Forward (Vf) (Typ) | 1.5V | Supplier Device Package | 20-LCCC |
| Series | - | Rise / Fall Time (Typ) | 35ns, 35ns |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | Packaging | Tube |
| Package / Case | 20-CLCC | Output Type | Open Collector, Schottky Clamped |
| Other Names | 516-4223 HCPL-6630-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inputs - Side 1/Side 2 | 2/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 1500VDC 2 Channel 1kV/µs CMTI 20-LCCC |
| Data Rate | 10MBd | Current - Output / Channel | 25mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 1kV/µs |
