HCPL-181-000E

Avago Technologies (Broadcom Limited)

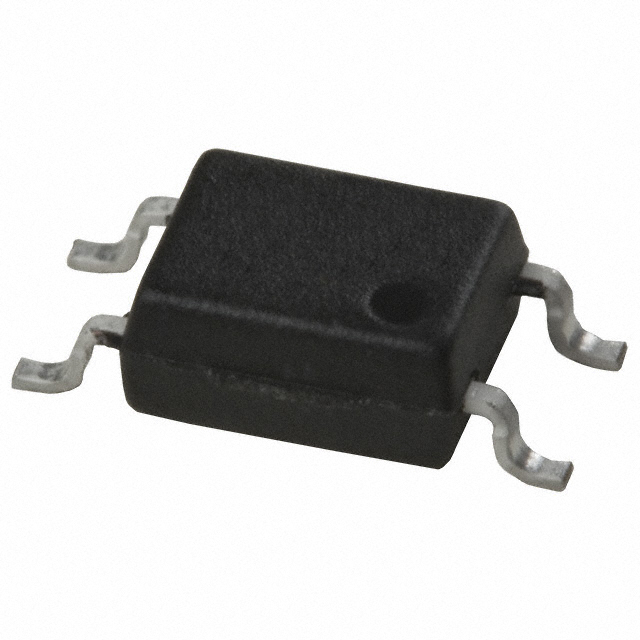

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCPL-181-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 3.75KV TRANSISTOR 4SOIC
Datasheets:	HCPL-181-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	496393 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 496393 pcs

Reference Price (In US Dollars)

3000 pcs: $0.075

6000 pcs: $0.07

15000 pcs: $0.067

30000 pcs: $0.066

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.075

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCPL-181-000E

Part Number	HCPL-181-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 3.75KV TRANSISTOR 4SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	496393 pcs	Data sheet	HCPL-181-000E.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SO
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	4-SOIC (0.209", 5.30mm Width)
Output Type	Transistor	Other Names	516-1646-2 HCPL181000E
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO
Current Transfer Ratio (Min)	50% @ 5mA	Current Transfer Ratio (Max)	600% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
