HCPL-0370-060E

Avago Technologies (Broadcom Limited)

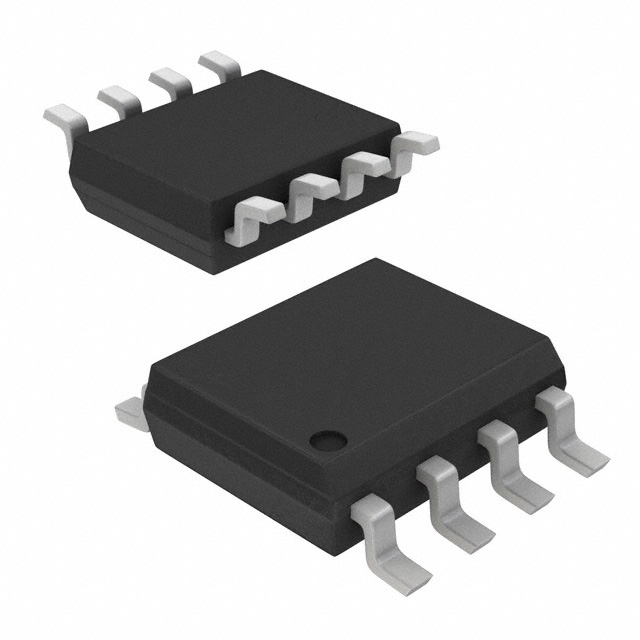

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCPL-0370-060E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 3.75KV DARLINGTON 8-SO
Datasheets:	HCPL-0370-060E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58958 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 58958 pcs

Reference Price (In US Dollars)

1900 pcs: $0.658

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.658

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCPL-0370-060E

Part Number	HCPL-0370-060E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 3.75KV DARLINGTON 8-SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58958 pcs	Data sheet	HCPL-0370-060E.pdf
Voltage - Output (Max)	20V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	-	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	4µs, 10µs	Supplier Device Package	8-SO
Series	-	Rise / Fall Time (Typ)	20µs, 0.3µs
Packaging	Tube	Package / Case	8-SOIC (0.154", 3.90mm Width)
Output Type	Darlington	Operating Temperature	-40°C ~ 85°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	AC, DC
Detailed Description	Optoisolator Darlington Output 3750Vrms 1 Channel 8-SO	Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-	Current - Output / Channel	30mA
