Avago Technologies (Broadcom Limited)

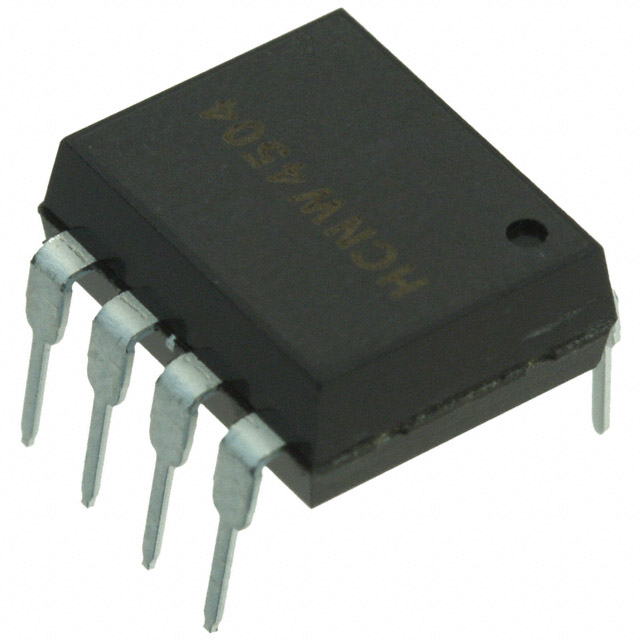

| Part Number | HCNW4504-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANSISTOR 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32760 pcs | Data sheet | HCNW4504-000E.pdf |
| Voltage - Output (Max) | 20V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.59V | Vce Saturation (Max) | - |
| Turn On / Turn Off Time (Typ) | 200ns, 300ns | Supplier Device Package | 8-DIP |
| Series | - | Rise / Fall Time (Typ) | - |
| Packaging | Tube | Package / Case | 8-DIP (0.400", 10.16mm) |
| Output Type | Transistor | Other Names | 516-2382-5 HCNW4504-000E-ND HCNW4504000E |
| Operating Temperature | -55°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 8-DIP |
| Current Transfer Ratio (Min) | 19% @ 16mA | Current Transfer Ratio (Max) | 63% @ 16mA |
| Current - Output / Channel | 8mA | Current - DC Forward (If) (Max) | 25mA |
