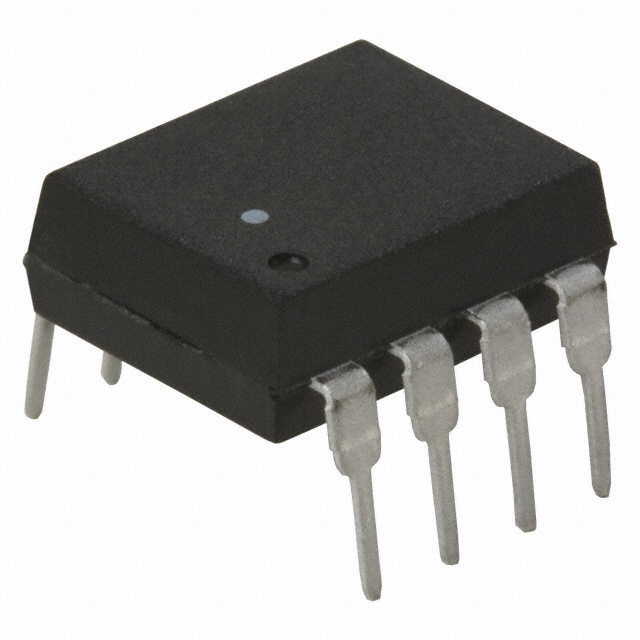

Avago Technologies (Broadcom Limited)
| Part Number | HCNW2601-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV OPEN COLLECTOR 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27692 pcs | Data sheet | HCNW2601-000E.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.64V | Supplier Device Package | 8-DIP |
| Series | - | Rise / Fall Time (Typ) | 24ns, 10ns |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | Packaging | Tube |
| Package / Case | 8-DIP (0.400", 10.16mm) | Output Type | Open Collector, Schottky Clamped |
| Other Names | 516-1617-5 HCNW2601000E |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 5000Vrms 1 Channel 10kV/µs CMTI 8-DIP |
| Data Rate | 10MBd | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 10kV/µs |
