ACSL-6420-00TE

Avago Technologies (Broadcom Limited)

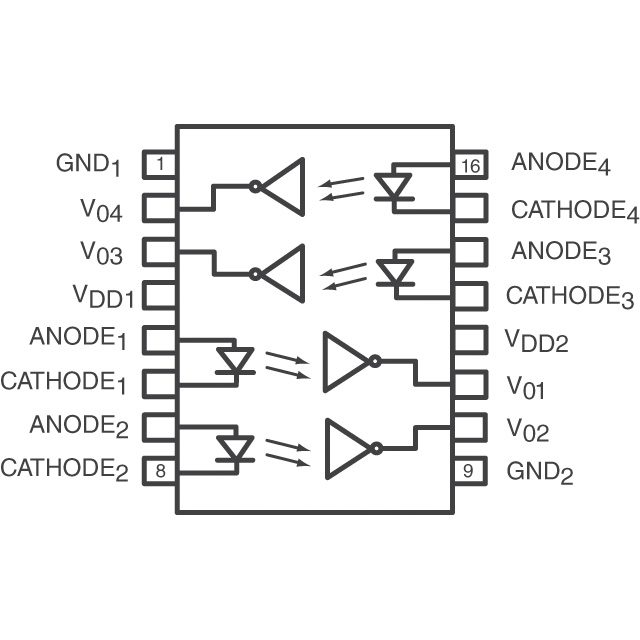

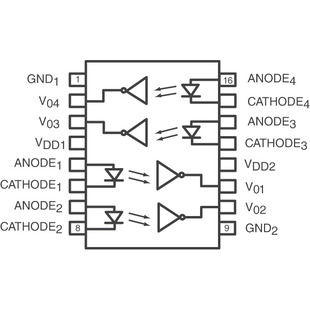

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACSL-6420-00TE
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 2.5KV 4CH OPEN COLL 16SO
Datasheets:	ACSL-6420-00TE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10848 pcs

Reference Price (In US Dollars)

1 pcs: $2.901

10 pcs: $2.627

25 pcs: $2.08

100 pcs: $1.751

250 pcs: $1.642

500 pcs: $1.505

1000 pcs: $1.423

2500 pcs: $1.368

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.901

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACSL-6420-00TE

Part Number	ACSL-6420-00TE	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 2.5KV 4CH OPEN COLL 16SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10848 pcs	Data sheet	ACSL-6420-00TE.pdf
Voltage - Supply	3 V ~ 5.5 V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.52V	Supplier Device Package	16-SO
Series	-	Rise / Fall Time (Typ)	30ns, 12ns
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns	Packaging	Tube
Package / Case	16-SOIC (0.154", 3.90mm Width)	Output Type	Open Collector, Schottky Clamped
Other Names	516-1733-5 ACSL-6420-00TE-ND ACSL642000TE	Operating Temperature	-40°C ~ 100°C
Number of Channels	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	2/2
Input Type	DC	Detailed Description	Logic Output Optoisolator 15MBd Open Collector, Schottky Clamped 2500Vrms 4 Channel 10kV/µs CMTI 16-SO
Data Rate	15MBd	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	15mA	Common Mode Transient Immunity (Min)	10kV/µs
