ACPL-1772L

Avago Technologies (Broadcom Limited)

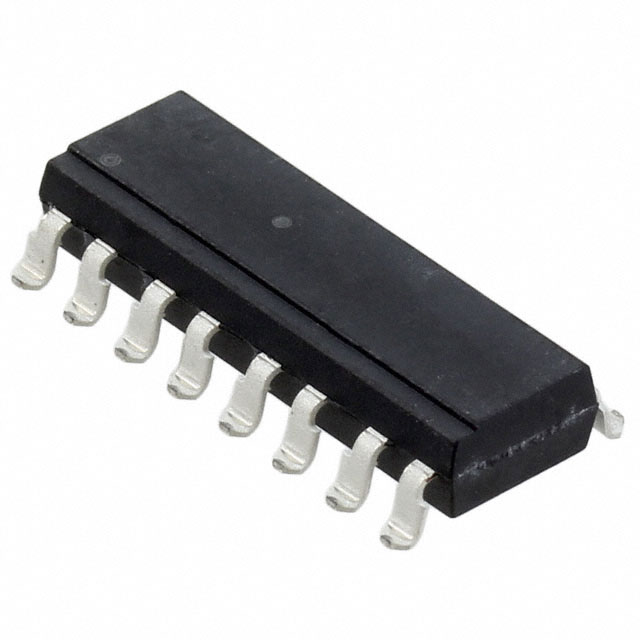

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACPL-1772L
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 1.5KV 4CH DARLNG 16-CDIP
Datasheets:	ACPL-1772L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1112 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1112 pcs

Reference Price (In US Dollars)

45 pcs: $27.617

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$27.617

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACPL-1772L

Part Number	ACPL-1772L	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 1.5KV 4CH DARLNG 16-CDIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1112 pcs	Data sheet	ACPL-1772L.pdf
Voltage - Output (Max)	20V	Voltage - Isolation	1500VDC
Voltage - Forward (Vf) (Typ)	1.4V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	2µs, 6µs	Supplier Device Package	16-CDIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	16-CDIP (0.300", 7.62mm)
Output Type	Darlington	Operating Temperature	-55°C ~ 125°C
Number of Channels	4	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington Output 1500VDC 4 Channel 16-CDIP	Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	40mA
Current - DC Forward (If) (Max)	10mA
