4N46

Avago Technologies (Broadcom Limited)

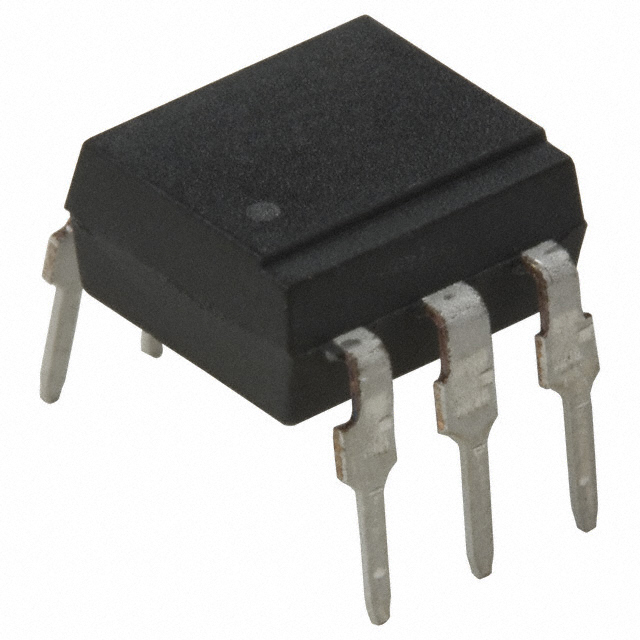

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4N46
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 3.75KV DARL W/BASE 6DIP
Datasheets:	4N46.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	63911 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 63911 pcs

Reference Price (In US Dollars)

2000 pcs: $0.58

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.58

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4N46

Part Number	4N46	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 3.75KV DARL W/BASE 6DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	63911 pcs	Data sheet	4N46.pdf
Voltage - Output (Max)	20V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 150µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Darlington with Base	Other Names	516-1022-5
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Type	DC	Detailed Description	Optoisolator Darlington with Base Output 3750Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	200% @ 10mA	Current Transfer Ratio (Max)	1000% @ 10mA
Current - Output / Channel	60mA	Current - DC Forward (If) (Max)	20mA
Base Part Number	4N46
