PTH05060WAD

Astec America (Artesyn Embedded Technologies)

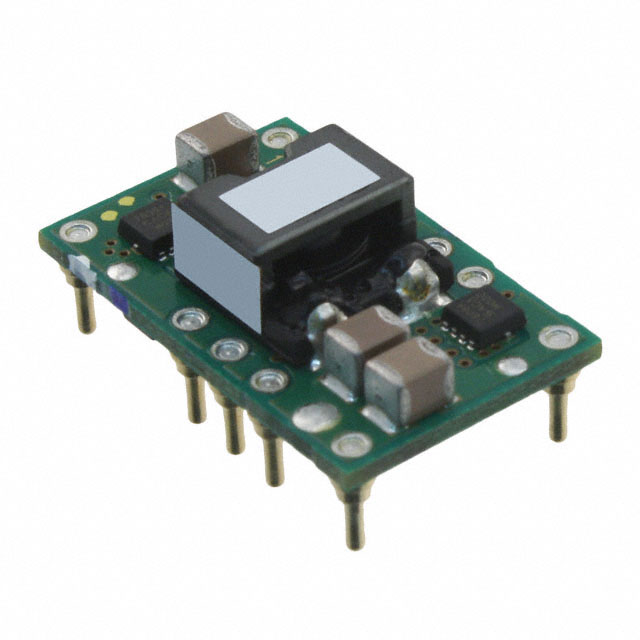

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PTH05060WAD
Manufacturer/Brand:	Astec America (Artesyn Embedded Technologies)
Product description	DC DC CONVERTER 0.8-3.6V 36W
Datasheets:	PTH05060WAD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5717 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5717 pcs

Reference Price (In US Dollars)

1 pcs: $6.015

5 pcs: $5.97

10 pcs: $5.924

48 pcs: $5.831

96 pcs: $5.553

144 pcs: $5.09

288 pcs: $4.998

528 pcs: $4.924

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.015

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PTH05060WAD

Part Number	PTH05060WAD	Manufacturer	Astec America (Artesyn Embedded Technologies)
Description	DC DC CONVERTER 0.8-3.6V 36W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5717 pcs	Data sheet	PTH05060WAD.pdf
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	0.8 ~ 3.6 V	Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V	Type	Non-Isolated PoL Module
Size / Dimension	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)	Series	PTH05060W
Power (Watts)	36W	Packaging	Tray
Package / Case	10-DIP Module	Other Names	393-1165
Operating Temperature	-40°C ~ 85°C	Number of Outputs	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, SCP, UVLO	Efficiency	94%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 10A 4.5V - 5.5V Input	Current - Output (Max)	10A
Applications	ITE (Commercial)
