Aries Electronics, Inc.

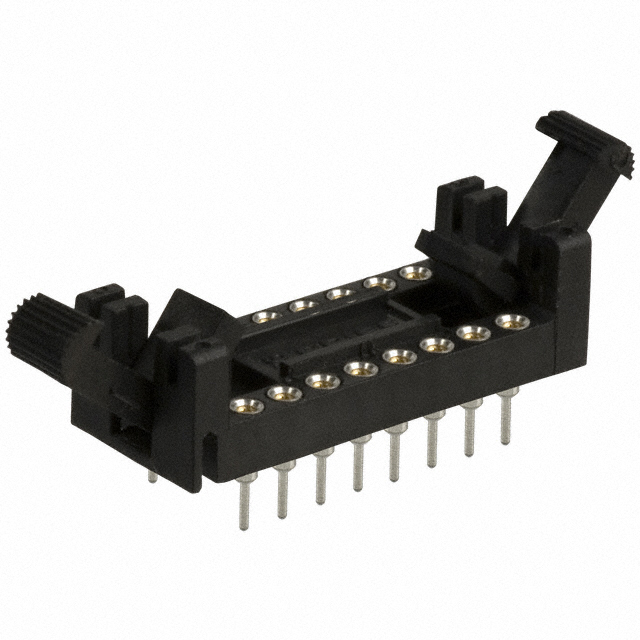

| Part Number | 16-C280-10 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 16POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21453 pcs | Data sheet | 16-C280-10.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.125" (3.18mm) |
| Termination | Solder | Series | EJECT-A-DIP™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 16C-280-10 16C28010 A516 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions or Pins (Grid) | 16 (2 x 8) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Closed Frame | Current Rating | 3A |
| Contact Resistance | - | Contact Material - Post | Brass |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
