14-820-90

Aries Electronics, Inc.

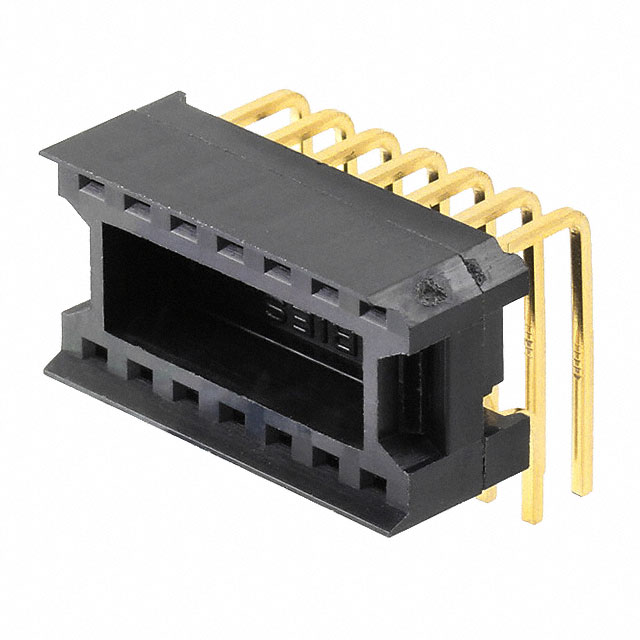

Image may be representation. See specifications for product details.

Product Overview

Part Number:	14-820-90
Manufacturer/Brand:	Aries Electronics, Inc.
Product description	CONN IC DIP SOCKET 14POS GOLD
Datasheets:	14-820-90.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13782 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13782 pcs

Reference Price (In US Dollars)

15 pcs: $2.742

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.742

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 14-820-90

Part Number	14-820-90	Manufacturer	Aries Electronics, Inc.
Description	CONN IC DIP SOCKET 14POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13782 pcs	Data sheet	14-820-90.pdf
Type	DIP, 0.3" (7.62mm) Row Spacing	Termination Post Length	0.145" (3.68mm)
Termination	Solder	Series	Vertisockets™ 800
Pitch - Post	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Bulk	Other Names	14-820-90-ND A811AR
Operating Temperature	-	Number of Positions or Pins (Grid)	14 (2 x 7)
Mounting Type	Through Hole, Right Angle, Horizontal	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Features	Closed Frame	Current Rating	1.5A
Contact Resistance	-	Contact Material - Post	Phosphor Bronze
Contact Material - Mating	Phosphor Bronze	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold
