Apex Microtechnology

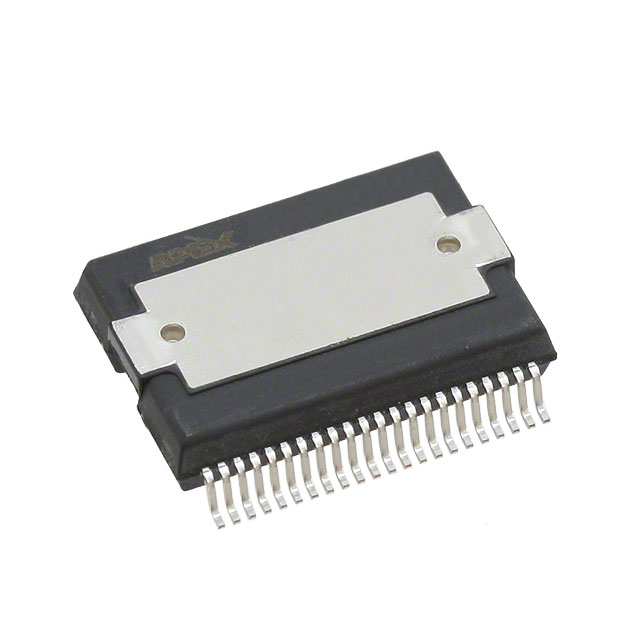

| Part Number | SA306AHU | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | IC MOTOR DRIVER PWM 44HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4096 pcs | Data sheet | |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Load | 9 V ~ 60 V |
| Technology | DMOS | Supplier Device Package | 44-HSOP |
| Series | Apex Precision Power® | Rds On (Typ) | 250 mOhm LS, 300 mOhm HS |
| Packaging | Bulk | Package / Case | 44-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Output Configuration | Half Bridge (3) | Other Names | 598-1810 598-2078 598-2078-ND SA306AHU-FH |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 9 Weeks |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM | Features | - |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO | Detailed Description | Half Bridge (3) Driver DC Motors, General Purpose, Solenoids DMOS 44-HSOP |
| Current - Peak Output | 17A | Current - Output / Channel | 8A |
| Base Part Number | SA30* | Applications | DC Motors, General Purpose, Solenoids |
