SA12L

Apex Microtechnology

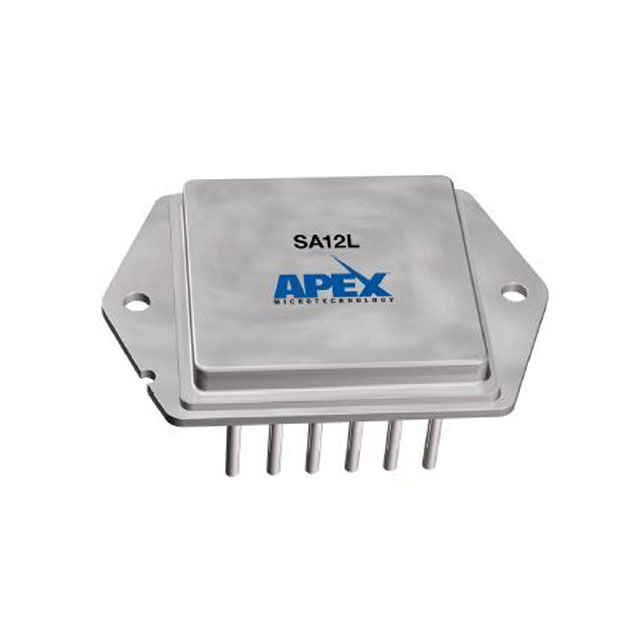

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SA12L
Manufacturer/Brand:	Apex Microtechnology
Product description	SWITCH AMP 200V 15A FULL BRIDGE
Datasheets:	SA12L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	144 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 144 pcs

Reference Price (In US Dollars)

100 pcs: $221.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$221.142

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SA12L

Part Number	SA12L	Manufacturer	Apex Microtechnology
Description	SWITCH AMP 200V 15A FULL BRIDGE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	144 pcs	Data sheet	SA12L.pdf
Voltage - Supply	14 V ~ 16 V	Voltage - Load	16 V ~ 200 V
Technology	Power MOSFET	Supplier Device Package	12-PowerDip
Series	-	Rds On (Typ)	400 mOhm (Max)
Packaging	Bulk	Package / Case	12-PowerDIP, Module
Output Configuration	Half Bridge (2)	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Load Type	Inductive, Capacitive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	PWM
Features	-	Fault Protection	Current Limiting, Over Temperature
Detailed Description	Half Bridge (2) Driver AC Motors, Piezo Devices Power MOSFET 12-PowerDip	Current - Peak Output	20A
Current - Output / Channel	15A	Applications	AC Motors, Piezo Devices
