HS24

Apex Microtechnology

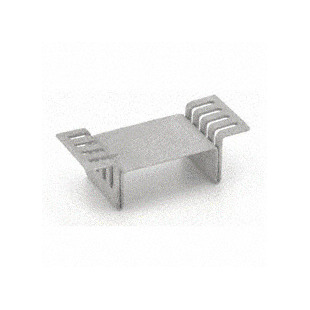

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HS24
Manufacturer/Brand:	Apex Microtechnology
Product description	HEATSINK SMT
Datasheets:	HS24.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	8642 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8642 pcs

Reference Price (In US Dollars)

1 pcs: $4.208

10 pcs: $3.973

25 pcs: $3.74

50 pcs: $3.506

100 pcs: $3.272

250 pcs: $3.038

500 pcs: $2.98

1000 pcs: $2.922

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.208

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HS24

Part Number	HS24	Manufacturer	Apex Microtechnology
Description	HEATSINK SMT	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	8642 pcs	Data sheet	HS24.pdf
Width	1.220" (30.99mm)	Type	Top Mount
Thermal Resistance @ Natural	50.00°C/W	Thermal Resistance @ Forced Air Flow	16.00°C/W @ 600 LFM
Shape	Rectangular, Fins	Series	Apex Precision Power®
Power Dissipation @ Temperature Rise	-	Package Cooled	SMD
Other Names	598-1376	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Solderable	Material	Copper
Manufacturer Standard Lead Time	12 Weeks	Length	0.500" (12.70mm)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Height Off Base (Height of Fin)	0.400" (10.16mm)
Diameter	-	Detailed Description	Heat Sink SMD Copper Top Mount
Attachment Method	SMD Pad
