HS04

Apex Microtechnology

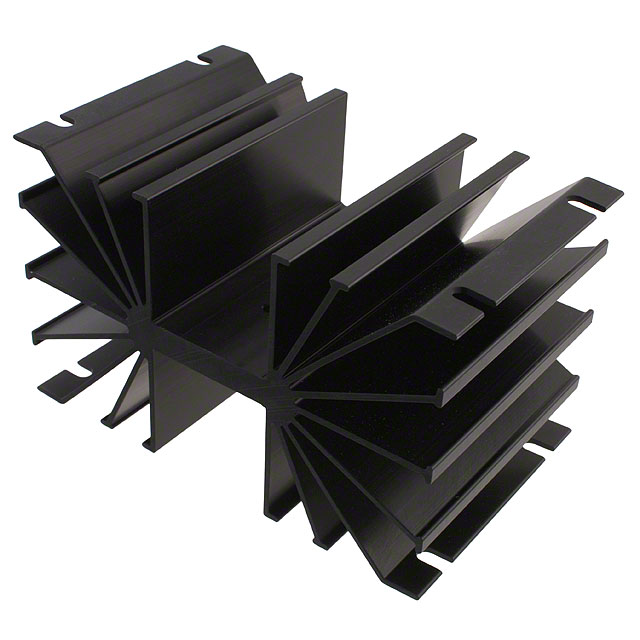

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HS04
Manufacturer/Brand:	Apex Microtechnology
Product description	HEATSINK 8P TO-3 .95C/W
Datasheets:	HS04.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	858 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 858 pcs

Reference Price (In US Dollars)

1 pcs: $45.726

10 pcs: $42.868

25 pcs: $40.011

50 pcs: $38.582

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$45.726

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HS04

Part Number	HS04	Manufacturer	Apex Microtechnology
Description	HEATSINK 8P TO-3 .95C/W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	858 pcs	Data sheet	HS04.pdf
Width	4.750" (120.65mm)	Type	Board Level
Thermal Resistance @ Natural	0.95°C/W	Thermal Resistance @ Forced Air Flow	0.35°C/W @ 300 LFM
Shape	Rectangular, Fins	Series	Apex Precision Power®
Power Dissipation @ Temperature Rise	50.0W @ 60°C	Package Cooled	TO-3
Other Names	598-1472 598-2020 598-2020-ND HS04-ND	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	12 Weeks	Length	3.000" (76.20mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	3.000" (76.20mm)
Diameter	-	Detailed Description	Heat Sink TO-3 Aluminum 50.0W @ 60°C Board Level
Attachment Method	Bolt On
