Anytek (Amphenol Anytek)

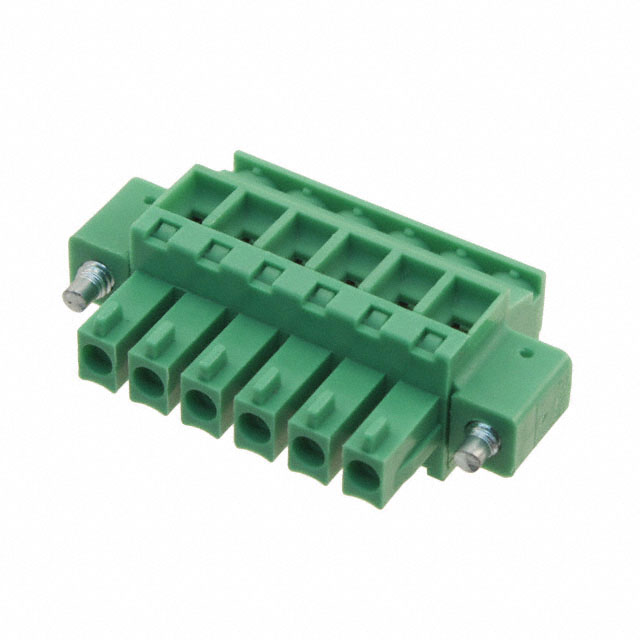

| Part Number | TS06315C0000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36578 pcs | Data sheet | |
| Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 0.5-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.2 Nm (1.7 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | 02-381 |
| Screw Size | M2 | Positions Per Level | 6 |
| Plug Wire Entry | 90° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 20020009-D061B01LF 20020009D061B01LF 609-4064 TS06315C0000G-ND TS06315C00J0G TS06315C00J0G-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.751" (19.08mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
