Anytek (Amphenol Anytek)

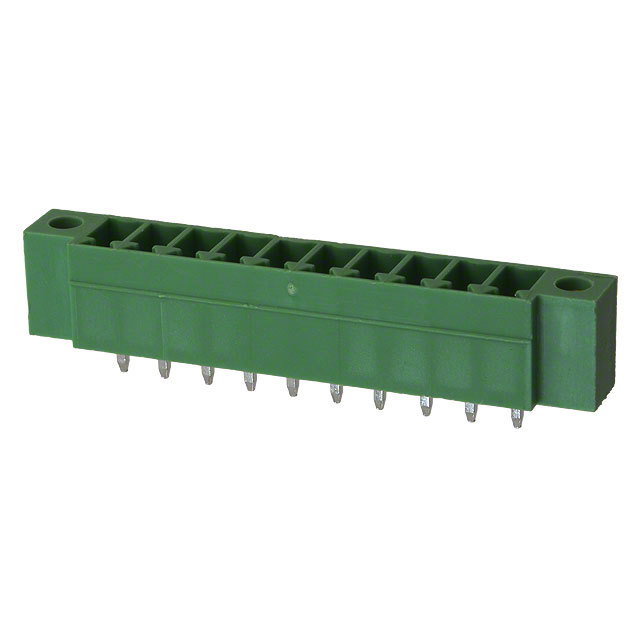

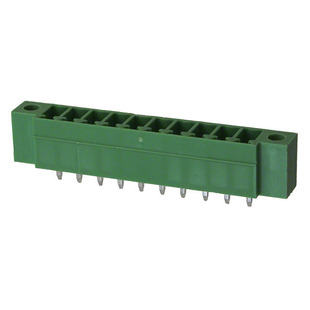

| Part Number | OQ1035500000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS VERT 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49369 pcs | Data sheet | OQ1035500000G.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | 06-381 |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 20020108-D101A01LF 20020108D101A01LF 609-4078 OQ1035500000G-ND OQ10355000J0G OQ10355000J0G-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.362" (9.20mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | Vertical | Features | Mating Flange |
| Detailed Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
