Anytek (Amphenol Anytek)

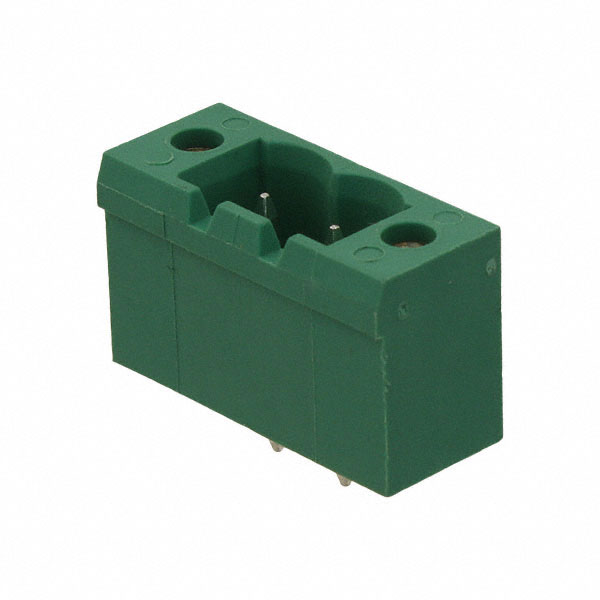

| Part Number | OQ0255500000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 315722 pcs | Data sheet | OQ0255500000G.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | 06-508 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 20020108-H021A01LF 20020108H021A01LF 609-4121 OQ0255500000G-ND OQ02555000J0G OQ02555000J0G-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | Vertical | Features | Mating Flange |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole | Current - UL | 12A |
| Current - IEC | - | Contact Tail Length | 0.157" (4.00mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
