3285-6001

Amphenol SV Microwave

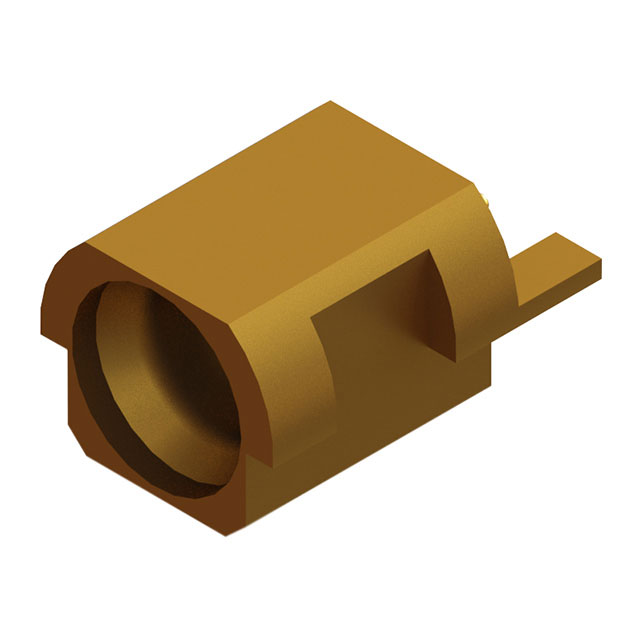

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3285-6001
Manufacturer/Brand:	Amphenol SV Microwave
Product description	CONN SMPM PLUG STR 50OHM EDGEMNT
Datasheets:	3285-6001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3710 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3710 pcs

Reference Price (In US Dollars)

1 pcs: $10.024

10 pcs: $9.049

25 pcs: $8.67

50 pcs: $8.128

100 pcs: $7.857

250 pcs: $7.423

500 pcs: $7.207

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.024

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3285-6001

Part Number	3285-6001	Manufacturer	Amphenol SV Microwave
Description	CONN SMPM PLUG STR 50OHM EDGEMNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3710 pcs	Data sheet	3285-6001.pdf
Shield Termination	Solder	Series	-
Packaging	Bulk	Operating Temperature	-55°C ~ 125°C
Number of Ports	1	Mounting Type	Board Edge, Cutout; Surface Mount
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	-
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	40GHz	Features	Full Detent
Fastening Type	Snap-On	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMPM Connector Plug, Male Pin 50 Ohm Board Edge, Cutout; Surface Mount Solder	Contact Termination	Solder
Connector Type	Plug, Male Pin	Connector Style	SMPM
Center Contact Plating	Gold	Center Contact Material	Beryllium Copper
Cable Group	-	Body Material	Stainless Steel
Body Finish	Gold
