1521-00002-TD

Amphenol SV Microwave

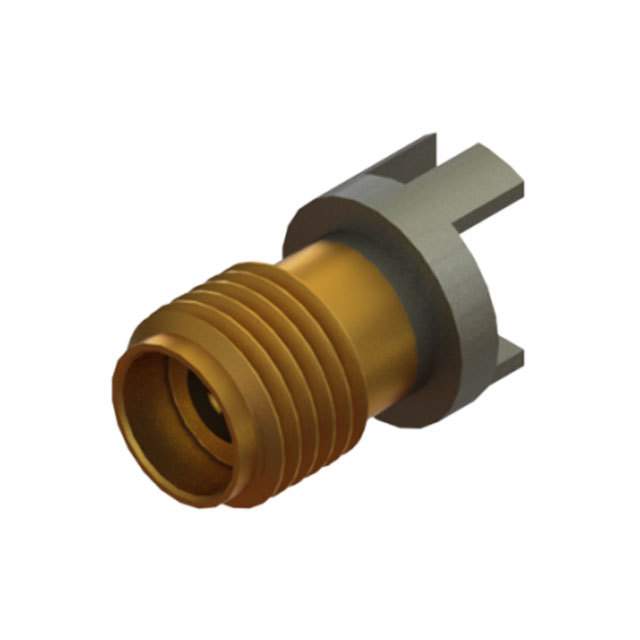

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1521-00002-TD
Manufacturer/Brand:	Amphenol SV Microwave
Product description	2.92MM JACK R/A 50OHM EDGE MNT
Datasheets:	1521-00002-TD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1474 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1474 pcs

Reference Price (In US Dollars)

1 pcs: $24.983

10 pcs: $23.512

25 pcs: $22.778

50 pcs: $21.308

100 pcs: $20.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$24.983

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1521-00002-TD

Part Number	1521-00002-TD	Manufacturer	Amphenol SV Microwave
Description	2.92MM JACK R/A 50OHM EDGE MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1474 pcs	Data sheet	1521-00002-TD.pdf
Shield Termination	Solder	Series	-
Packaging	Bulk	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Board Edge, End Launch
Mounting Feature	-	Mating Cycles	500
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	0.25dB	Ingress Protection	-
Includes	-	Impedance	50 Ohm
Housing Color	Gold	Frequency - Max	40GHz
Features	-	Fastening Type	Threaded
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket
Connector Style	SMA	Center Contact Plating	Gold
Center Contact Material	Beryllium Copper	Cable Group	-
Body Material	Brass	Body Finish	Gold
