Amphenol Pcd

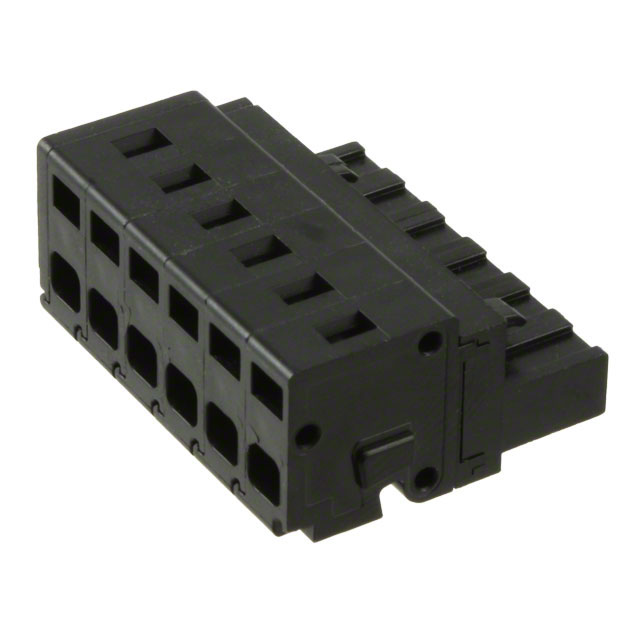

| Part Number | SCFF06210 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31332 pcs | Data sheet | SCFF06210.pdf |
| Wire Strip Length | 6.35mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | SCFF |
| Screw Size | - | Positions Per Level | 6 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | APC1239 |
| Operating Temperature | 105°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.550" (13.97mm) |
| Ingress Protection | - | Housing Material | Polyphenylene Oxide (PPO) |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
