Amphenol Pcd
| Part Number | ELFF03230 | Manufacturer | Amphenol Pcd |
|---|---|---|---|

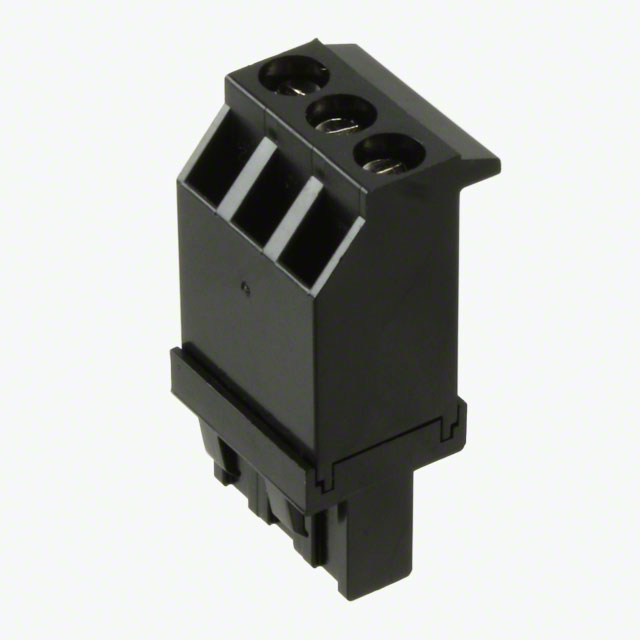

| Description | TERM BLOCK PLUG 3POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28046 pcs | Data sheet | ELFF03230.pdf |
| Wire Strip Length | 7.87mm, 12.45mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12 AWG, 14-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | ELFF |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | 90° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | APC1175 |
| Operating Temperature | 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.218" (30.94mm) |
| Ingress Protection | - | Housing Material | Polyphenylene Oxide (PPO) |
| Header Orientation | - | Features | Retention Latches (Wire Side) |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
