Amphenol Pcd

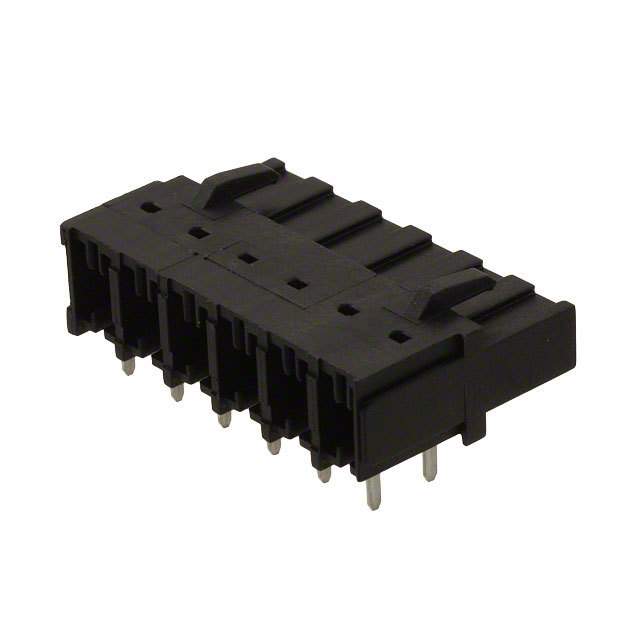

| Part Number | ELFB06230 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 6POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29556 pcs | Data sheet | ELFB06230.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Female Sockets | Torque - Screw | - |
| Termination Style | Solder | Series | ELFB |
| Screw Size | - | Positions Per Level | 6 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | APC1217 |
| Operating Temperature | 125°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.391" (9.93mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Header Orientation | 90°, Right Angle | Features | Interlocking (Side), Retention Latches |
| Detailed Description | 6 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.123" (3.12mm) |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
