Amphenol Pcd

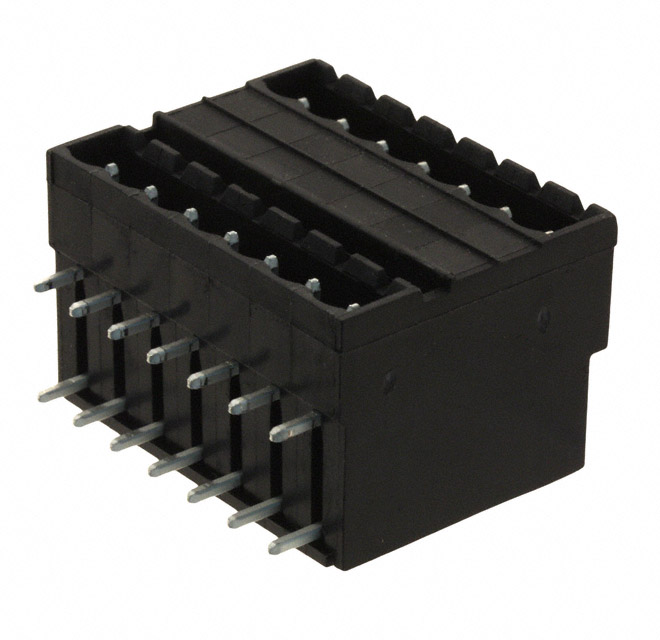

| Part Number | ELFA14110 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 14POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36959 pcs | Data sheet | ELFA14110.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | ELFA |
| Screw Size | - | Positions Per Level | 7 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | APC1165 |
| Operating Temperature | 125°C | Number of Positions | 14 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.107" (28.12mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.155" (3.94mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
