Amphenol Connex (Amphenol RF)
| Part Number | 31-206 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8259 pcs | Data sheet | 1.31-206.pdf2.31-206.pdf |
| Voltage Rating | 500V | Shield Termination | Clamp |
| Series | - | Packaging | Bulk |
| Other Names | 031-206 31206 ARF1127 UG-909/U |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.2dB |

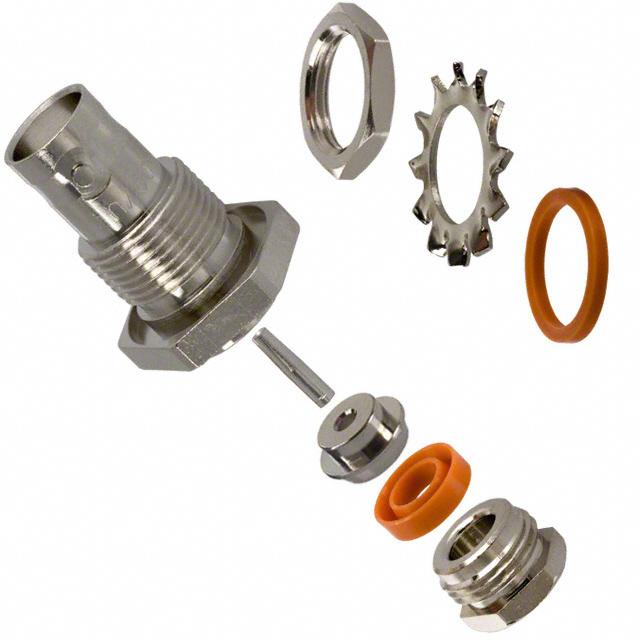

| Ingress Protection | - | Includes | 7 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Silver | Center Contact Material | Beryllium Copper |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 | Body Material | Brass |
| Body Finish | Silver |
