302114

Amphenol Connex (Amphenol RF)

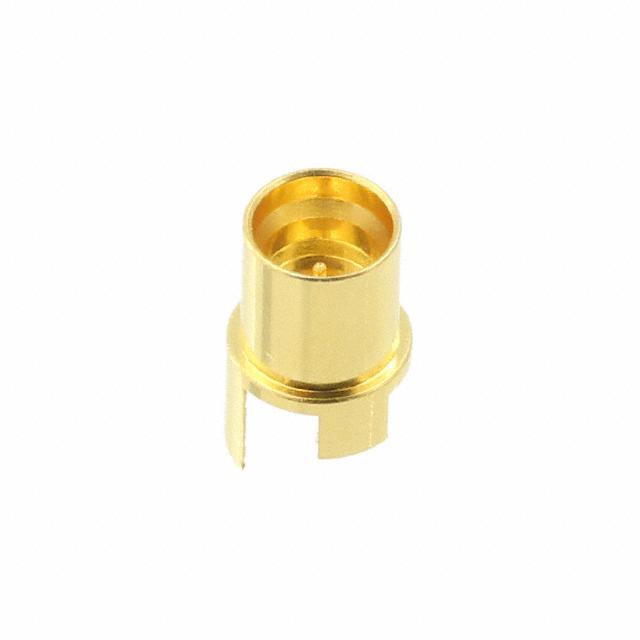

Image may be representation. See specifications for product details.

Product Overview

Part Number:	302114
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMP RCPT STR 50OHM EDGE MNT
Datasheets:	302114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9194 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9194 pcs

Reference Price (In US Dollars)

1 pcs: $3.858

10 pcs: $3.691

25 pcs: $3.355

50 pcs: $3.187

100 pcs: $3.104

250 pcs: $2.768

500 pcs: $2.60

1000 pcs: $2.298

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 302114

Part Number	302114	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMP RCPT STR 50OHM EDGE MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9194 pcs	Data sheet	302114.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	-	Packaging	Bulk
Other Names	ACX2517	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Board Edge, End Launch
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	100	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	-
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	26.5GHz	Features	Limited Detent
Fastening Type	Snap-On	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMP Connector Receptacle, Male Pin 50 Ohm Board Edge, End Launch Solder	Contact Termination	Solder
Connector Type	Receptacle, Male Pin	Connector Style	SMP
Center Contact Plating	Gold	Center Contact Material	Brass
Cable Group	-	Body Material	Beryllium Copper
Body Finish	Gold
