172316

Amphenol Connex (Amphenol RF)Amphenol Connex (Amphenol RF)

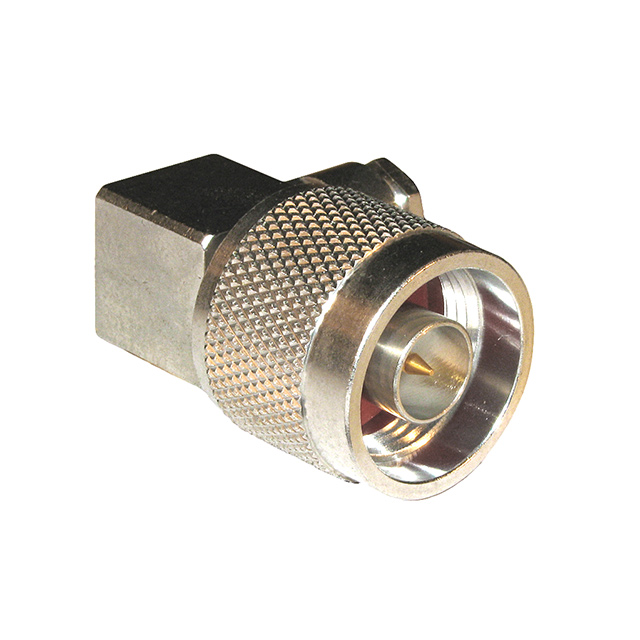

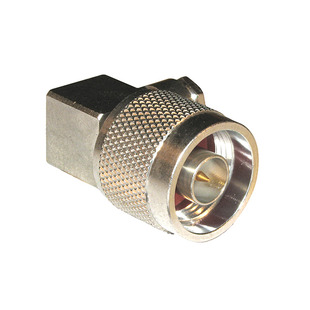

172316 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 172316
Manufacturer/Brand: Amphenol Connex (Amphenol RF)
Product description CONN N PLUG R/A 50OHM SOLDER
Datasheets: 172316.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4823 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4823 pcs
Reference Price (In US Dollars)
1 pcs
$7.481
10 pcs
$6.946
25 pcs
$6.233
50 pcs
$6.055
100 pcs
$5.343
250 pcs
$4.987
500 pcs
$4.88
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$7.481

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 172316

Part Number 172316 Manufacturer Amphenol Connex (Amphenol RF)
Description CONN N PLUG R/A 50OHM SOLDER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4823 pcs Data sheet 172316.pdf
Voltage Rating 1500V Shield Termination Clamp
Series - Packaging Bulk
Other Names 172316-ND
ARF3003
Operating Temperature -65°C ~ 165°C
Number of Ports 1 Mounting Type Free Hanging (In-Line), Right Angle
Mounting Feature - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles 500 Manufacturer Standard Lead Time 9 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Loss 0.15dB
Ingress Protection Weatherproof Includes 7 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Gasket, 1 Insulator, 1 Nut, 1 Washer
Impedance 50 Ohm Housing Color Silver
Frequency - Max 11GHz Features -
Fastening Type Threaded Dielectric Material Polytetrafluoroethylene (PTFE)
Detailed Description N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder Contact Termination Solder
Connector Type Plug, Male Pin Connector Style N Type
Center Contact Plating Gold Center Contact Material Brass
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 Body Material Brass
Body Finish White Bronze
