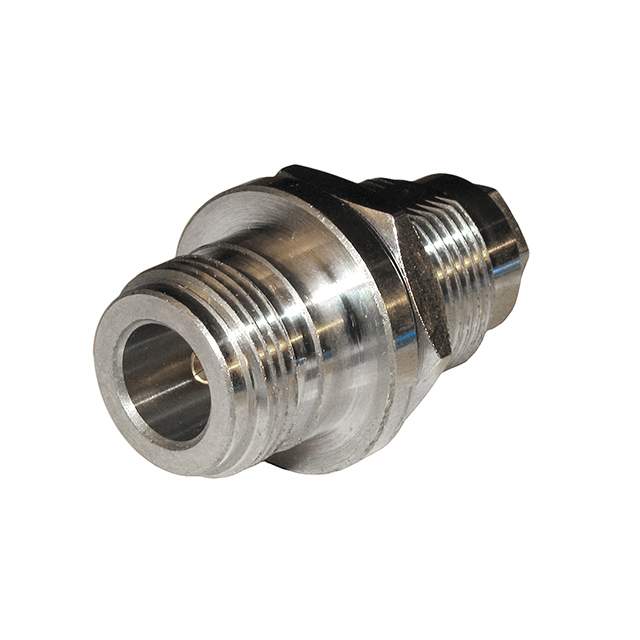

Amphenol Connex (Amphenol RF)
| Part Number | 172223 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3900 pcs | Data sheet | 172223.pdf |
| Voltage Rating | 1500V | Shield Termination | Clamp |
| Series | - | Packaging | Bulk |
| Other Names | 172223-ND ARF2997 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.15dB |
| Ingress Protection | Weatherproof | Includes | 11 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 2 Insulators, 1 Lockwasher, 1 Nut, 1 Top Hat, 1 Washer |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | N Type Connector Jack, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | N Type |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 | Body Material | Brass |
| Body Finish | White Bronze |
