162109

Amphenol Connex (Amphenol RF)

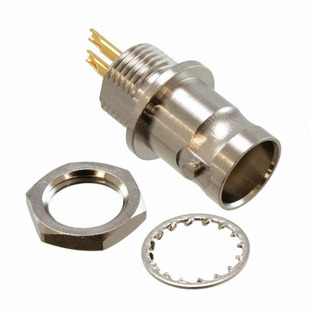

Image may be representation. See specifications for product details.

Product Overview

Part Number:	162109
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN BNC TWIN JACK STR 78 OHM
Datasheets:	162109.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13873 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13873 pcs

Reference Price (In US Dollars)

1 pcs: $2.785

10 pcs: $2.668

25 pcs: $2.436

50 pcs: $2.32

100 pcs: $2.204

250 pcs: $1.972

500 pcs: $1.856

1000 pcs: $1.624

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.785

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 162109

Part Number	162109	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN BNC TWIN JACK STR 78 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13873 pcs	Data sheet	162109.pdf
Shield Termination	Solder	Series	-
Packaging	Bulk	Other Names	162109-ND ACX2067
Operating Temperature	-40°C ~ 60°C	Number of Ports	1
Mounting Type	Panel Mount	Mounting Feature	Bulkhead - Rear Side Nut
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	500
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	3 pcs - 1 Connector, 1 Lockwasher, 1 Nut	Impedance	78 Ohm
Housing Color	Silver	Frequency - Max	200MHz
Features	-	Fastening Type	Bayonet Lock
Dielectric Material	Polybutylene Terephthalate (PBT)	Detailed Description	BNC, Twinaxial Connector Jack, Female Socket and Male Pin 78 Ohm Panel Mount Solder Cup
Contact Termination	Solder Cup	Connector Type	Jack, Female Socket and Male Pin
Connector Style	BNC, Twinaxial	Center Contact Plating	Gold
Center Contact Material	Brass; Phosphor Bronze	Cable Group	-
Body Material	Brass	Body Finish	Nickel
