152123

Amphenol Connex (Amphenol RF)

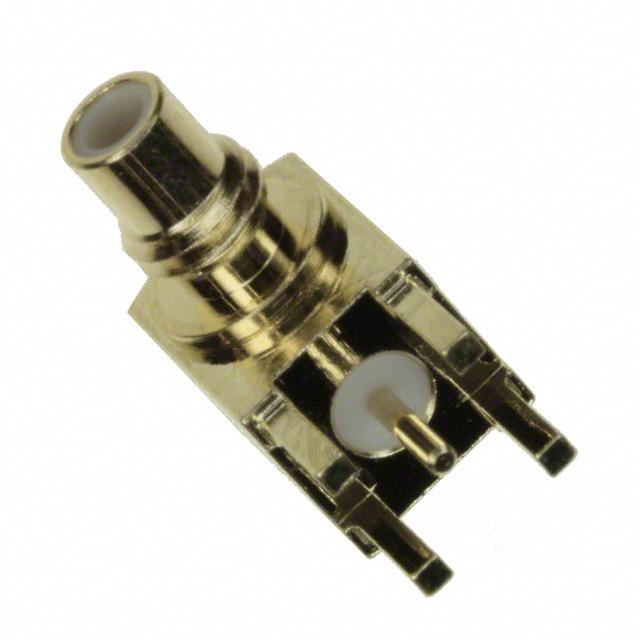

Image may be representation. See specifications for product details.

Product Overview

Part Number:	152123
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMC JACK R/A 50 OHM PCB
Datasheets:	152123.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15169 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15169 pcs

Reference Price (In US Dollars)

1 pcs: $2.272

10 pcs: $2.176

25 pcs: $1.987

50 pcs: $1.893

100 pcs: $1.798

250 pcs: $1.609

500 pcs: $1.514

1000 pcs: $1.325

2500 pcs: $1.259

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.272

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 152123

Part Number	152123	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMC JACK R/A 50 OHM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15169 pcs	Data sheet	152123.pdf
Voltage Rating	335V	Shield Termination	Solder
Series	-	Packaging	Bulk
Other Names	ACX1509	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Through Hole, Right Angle
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	0.6dB
Ingress Protection	-	Includes	-
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	10GHz	Features	-
Fastening Type	Threaded	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMC Connector Jack, Male Pin 50 Ohm Through Hole, Right Angle Solder	Contact Termination	Solder
Connector Type	Jack, Male Pin	Connector Style	SMC
Center Contact Plating	Gold	Center Contact Material	Brass
Cable Group	-	Body Material	Brass
Body Finish	Gold
