132284

Amphenol Connex (Amphenol RF)

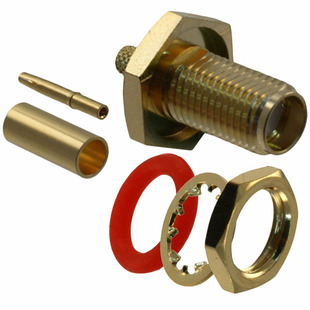

Image may be representation. See specifications for product details.

Product Overview

Part Number:	132284
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMA JACK STR 50 OHM SOLDER
Datasheets:	132284.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10573 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10573 pcs

Reference Price (In US Dollars)

1 pcs: $3.609

10 pcs: $3.452

25 pcs: $3.138

50 pcs: $2.982

100 pcs: $2.903

250 pcs: $2.589

500 pcs: $2.432

1000 pcs: $2.15

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.609

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 132284

Part Number	132284	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMA JACK STR 50 OHM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10573 pcs	Data sheet	132284.pdf
Voltage Rating	375V	Shield Termination	Crimp
Series	-	Packaging	Bulk
Other Names	ACX1421	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	12.4GHz	Features	-
Fastening Type	Threaded	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMA Connector Jack, Female Socket 50 Ohm Panel Mount Solder	Contact Termination	Solder
Connector Type	Jack, Female Socket	Connector Style	SMA
Center Contact Plating	Gold	Center Contact Material	Beryllium Copper
Cable Group	RG-174, 188, 188A, 316, LMR-100, M17/119-RG174	Body Material	Brass
Body Finish	Gold
