132220

Amphenol Connex (Amphenol RF)

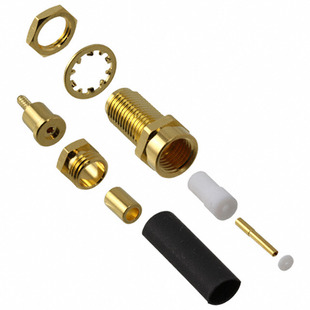

Image may be representation. See specifications for product details.

Product Overview

Part Number:	132220
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMA JACK STR 50 OHM SOLDER
Datasheets:	132220.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10149 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10149 pcs

Reference Price (In US Dollars)

1 pcs: $3.042

10 pcs: $2.909

25 pcs: $2.644

50 pcs: $2.512

100 pcs: $2.446

250 pcs: $2.182

500 pcs: $2.049

1000 pcs: $1.811

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.042

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 132220

Part Number	132220	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMA JACK STR 50 OHM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10149 pcs	Data sheet	132220.pdf
Shield Termination	Crimp	Series	-
Packaging	Bulk	Other Names	132220-ND ACX2075
Operating Temperature	-65°C ~ 165°C	Number of Ports	1
Mounting Type	Panel Mount	Mounting Feature	Bulkhead - Front Side Nut
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	500
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	Weatherproof
Includes	10 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 2 Insulators, 1 Lockwasher, 2 Nuts, 1 Rear Body	Impedance	50 Ohm
Housing Color	Gold	Frequency - Max	12.4GHz
Features	-	Fastening Type	Threaded
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	SMA Connector Jack, Female Socket 50 Ohm Panel Mount Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket
Connector Style	SMA	Center Contact Plating	Gold
Center Contact Material	Brass	Cable Group	RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Body Material	Brass	Body Finish	Gold
