Amphenol Connex (Amphenol RF)
| Part Number | 122500 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC JACK R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7321 pcs | Data sheet | 122500.pdf |
| Voltage Rating | 500V | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 122500-ND ARF2941 |
Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Panel Mount, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.18dB |

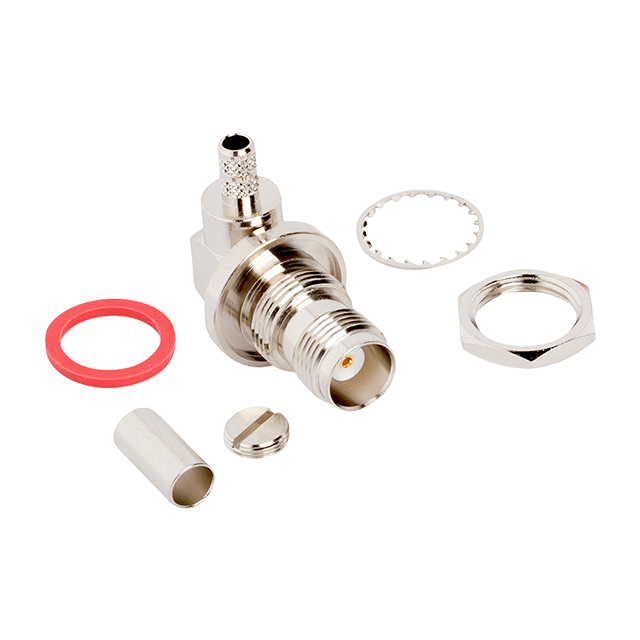

| Ingress Protection | - | Includes | 6 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | TNC |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 | Body Material | Brass |
| Body Finish | Nickel |
