Amphenol Connex (Amphenol RF)
| Part Number | 122210 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|

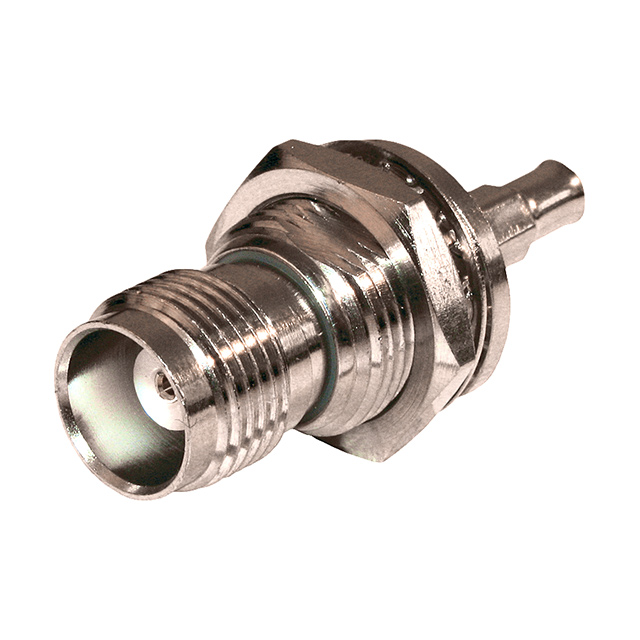

| Description | CONN TNC JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6632 pcs | Data sheet | 122210.pdf |
| Voltage Rating | 500V | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 122210-ND ARF2921 |
Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.18dB |
| Ingress Protection | - | Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 11GHz | Features | Isolated |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount Crimp | Contact Termination | Crimp |
| Connector Type | Jack, Female Socket | Connector Style | TNC |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 | Body Material | Brass |
| Body Finish | Nickel |
