Amphenol Connex (Amphenol RF)
| Part Number | 031-6527 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|

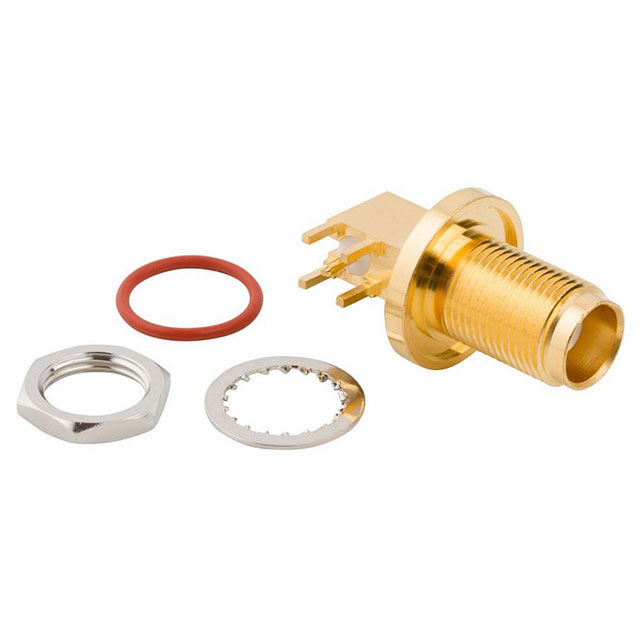

| Description | CONN TNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1955 pcs | Data sheet | 031-6527.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | ARC | Packaging | Bulk |
| Other Names | 031-6527-ND 31-6527 316527 ARF2868 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.18dB |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 3GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | TNC |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
