Amphenol Connex (Amphenol RF)
| Part Number | 031-5633 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK STR 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15681 pcs | Data sheet | 1.031-5633.pdf2.031-5633.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Other Names | 31-5633 315633 ARF1885 |
Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.2dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polypropylene (PP) |

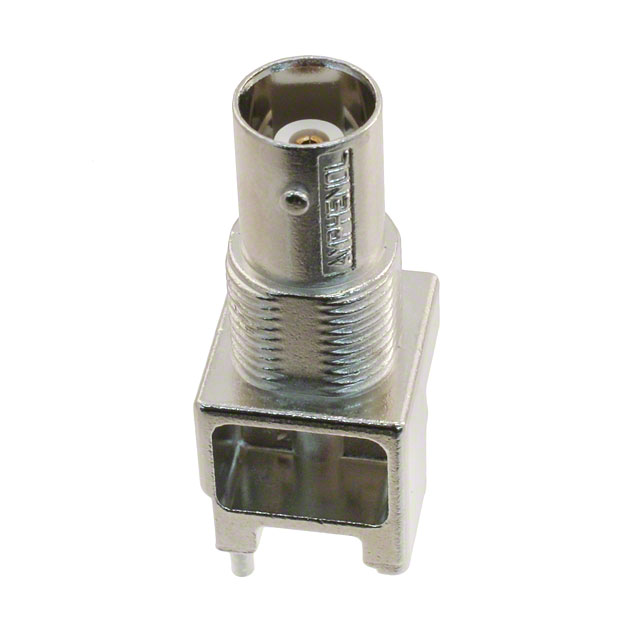

| Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Zinc Die Cast |
| Body Finish | Nickel |
