Amphenol FCI

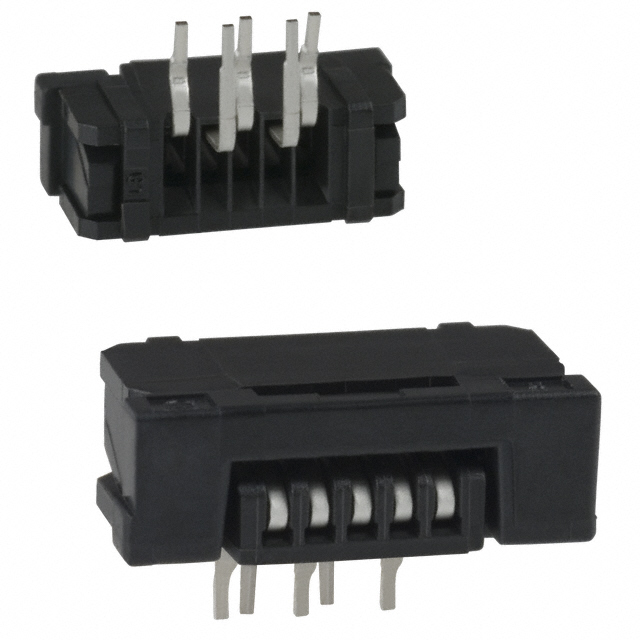

| Part Number | SLW5R-1C7LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC BOTTOM 5POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 333843 pcs | Data sheet | SLW5R-1C7LF.pdf |
| Voltage Rating | 100V | Termination | Kinked Pin |
| Series | SLW-R | Pitch | 0.039" (1.00mm) |
| Packaging | Tray | Other Names | 609-1930 SLW5R1C7LF |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Black | Height Above Board | 0.157" (4.00mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm, 0.33mm | Detailed Description | 5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight, Tapered |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | Black |
