Amphenol FCI
| Part Number | SLW4R-1C7 | Manufacturer | Amphenol FCI |
|---|---|---|---|

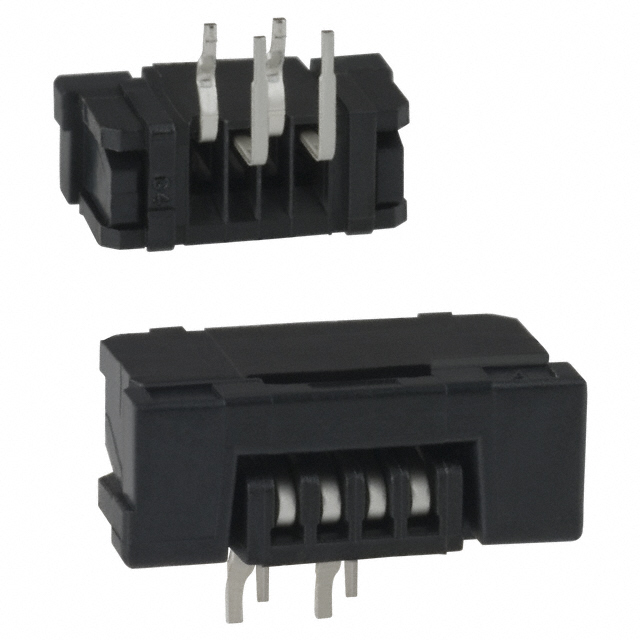

| Description | CONN FFC BOTTOM 4POS 1.00MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6267 pcs | Data sheet | SLW4R-1C7.pdf |
| Voltage Rating | 100V | Termination | Kinked Pin |
| Series | SLW-R | Pitch | 0.039" (1.00mm) |
| Packaging | Tray | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Black | Height Above Board | 0.157" (4.00mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm, 0.33mm | Detailed Description | 4 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Alloy |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight, Tapered |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | Black |
