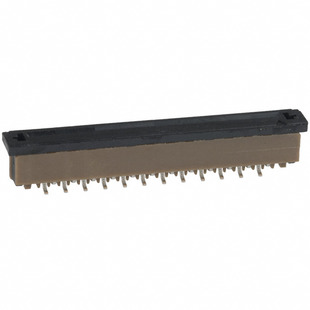

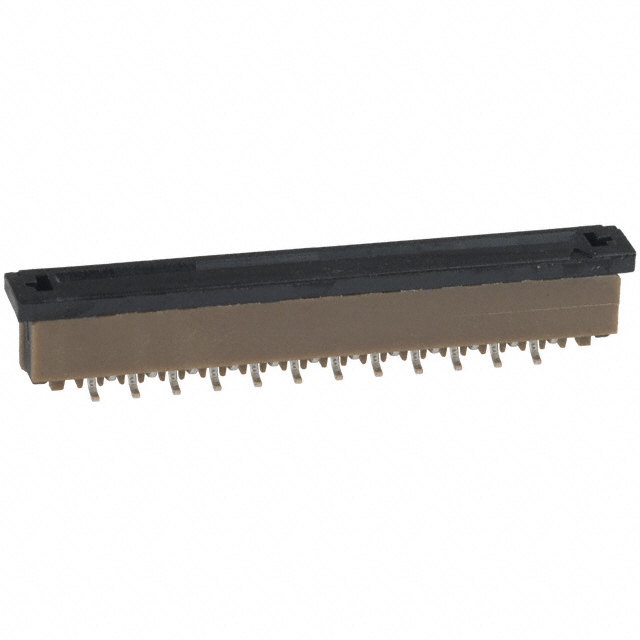

Amphenol FCI
| Part Number | SFW24S-2STE1 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC VERT 24POS 1MM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6497 pcs | Data sheet | SFW24S-2STE1.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Series | SFW | Pitch | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Thermoplastic, Glass Filled |
| Housing Color | Brown | Height Above Board | 0.209" (5.30mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm, 0.33mm | Detailed Description | 24 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Alloy |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Straight, Tapered |
| Actuator Material | Thermoplastic, Glass Filled | Actuator Color | Black |
