SFW20S-2STE1LF

Amphenol FCI

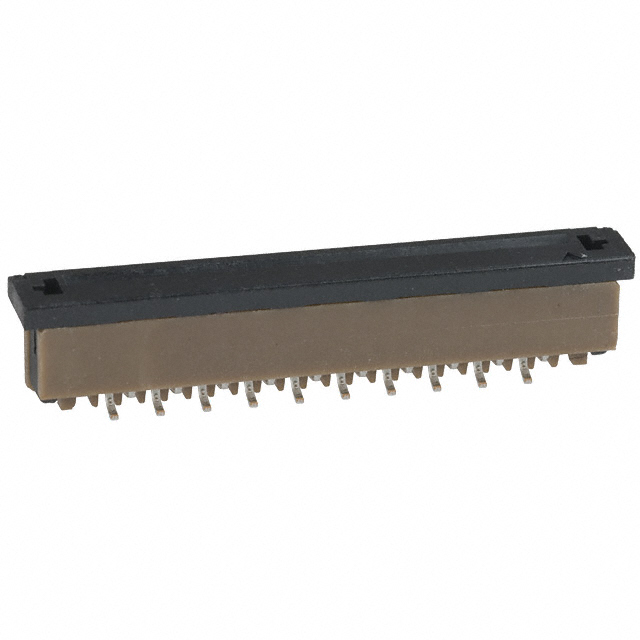

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFW20S-2STE1LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN FFC FPC VERT 20POS 1MM SMD
Datasheets:	SFW20S-2STE1LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	108149 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 108149 pcs

Reference Price (In US Dollars)

1 pcs: $0.34

10 pcs: $0.298

25 pcs: $0.28

50 pcs: $0.269

100 pcs: $0.257

250 pcs: $0.234

500 pcs: $0.21

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.34

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFW20S-2STE1LF

Part Number	SFW20S-2STE1LF	Manufacturer	Amphenol FCI
Description	CONN FFC FPC VERT 20POS 1MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	108149 pcs	Data sheet	SFW20S-2STE1LF.pdf
Voltage Rating	100V	Termination	Solder
Series	SFW	Pitch	0.039" (1.00mm)
Packaging	Original-Reel®	Other Names	609-1156-6
Operating Temperature	-55°C ~ 105°C	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	13 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Thermoplastic, Glass Filled
Housing Color	Brown	Height Above Board	0.209" (5.30mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm, 0.33mm	Detailed Description	20 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight, Tapered
Actuator Material	Thermoplastic, Glass Filled	Actuator Color	Black
