Amphenol FCI
| Part Number | SFV18R-4STBE1HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|

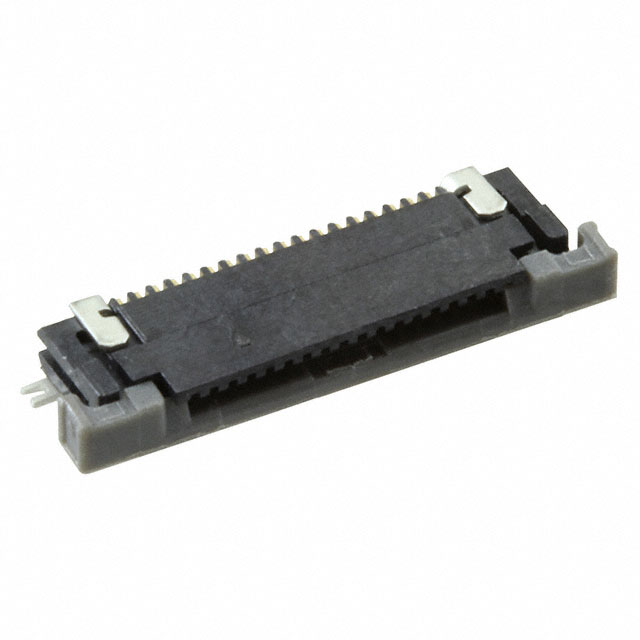

| Description | CONN FPC TOP 18POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 513854 pcs | Data sheet | SFV18R-4STBE1HLF.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | SFV-R | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 609-5200-2 SFV18R-4STBE1HLF-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 18 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Housing Color | Black | Height Above Board | 0.071" (1.80mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.33mm | Detailed Description | 18 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Notched |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free | Actuator Color | Gray |
