Amphenol FCI

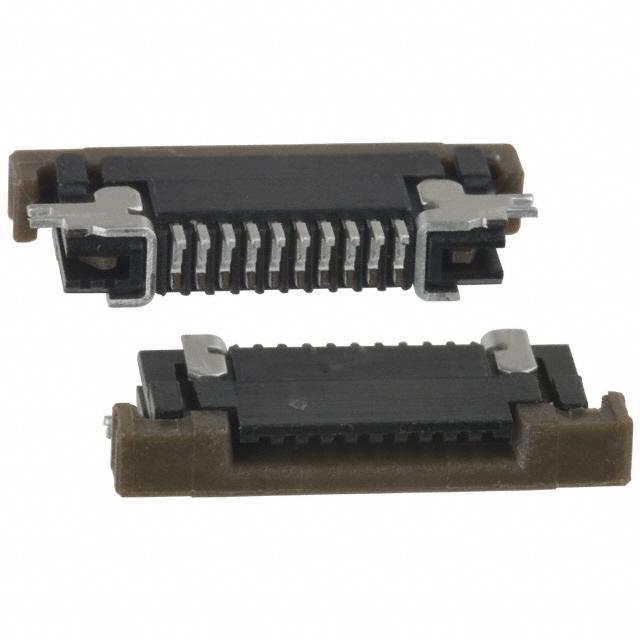

| Part Number | SFV10R-2STE1LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC TOP 10POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3721 pcs | Data sheet | SFV10R-2STE1LF.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | SFV-R | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 609-1857-2 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Housing Color | Black |
| Height Above Board | 0.071" (1.80mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm, 0.33mm |
| Detailed Description | 10 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Brown |
