MDB-E09SA-700

Amphenol Commercial Products

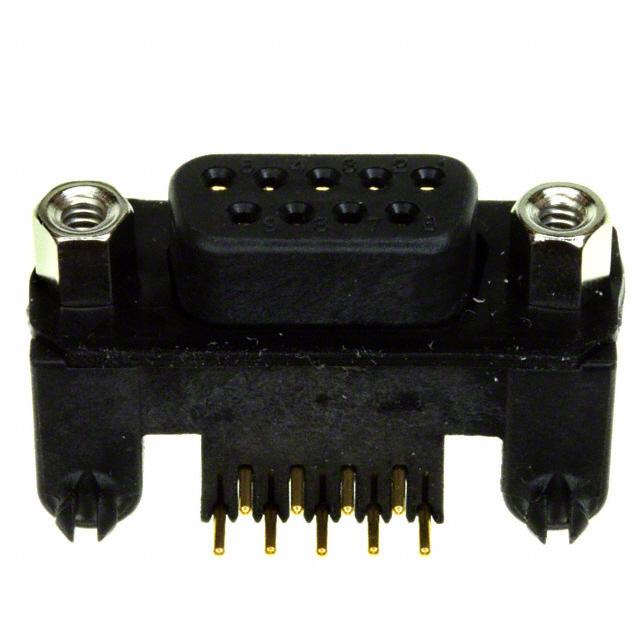

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MDB-E09SA-700
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN D-SUB RCPT 9POS R/A SOLDER
Datasheets:	1.MDB-E09SA-700.pdf 2.MDB-E09SA-700.pdf 3.MDB-E09SA-700.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4519 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4519 pcs

Reference Price (In US Dollars)

1 pcs: $7.557

10 pcs: $7.018

25 pcs: $6.298

60 pcs: $6.118

120 pcs: $5.398

300 pcs: $5.038

540 pcs: $4.93

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.557

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MDB-E09SA-700

Part Number	MDB-E09SA-700	Manufacturer	Amphenol Commercial Products
Description	CONN D-SUB RCPT 9POS R/A SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4519 pcs	Data sheet	1.MDB-E09SA-700.pdf 2.MDB-E09SA-700.pdf 3.MDB-E09SA-700.pdf
Wire Gauge	-	Voltage Rating	125V
Termination	Solder	Shell Size, Connector Layout	1 (DE, E)
Shell Material, Finish	Zinc, Nickel Plated	Series	MDB
Packaging	Tray	Other Names	MDBE09SA700
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions	9	Mounting Type	Panel Mount, Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Housing Material	Thermoplastic
Flange Feature	Mating Side, Female Screwlock (4-40)	Features	Board Lock
Detailed Description	9 Position D-Sub Receptacle, Female Sockets Connector	Current Rating	5A
Contact Type	Signal	Contact Material	Copper Alloy
Contact Form	-	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Type	Receptacle, Female Sockets
Connector Style	D-Sub	Color	Black
Backset Spacing	0.318" (8.08mm)
