Amphenol Commercial Products
| Part Number | L77SDCH37SOL2RM8C309 | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|

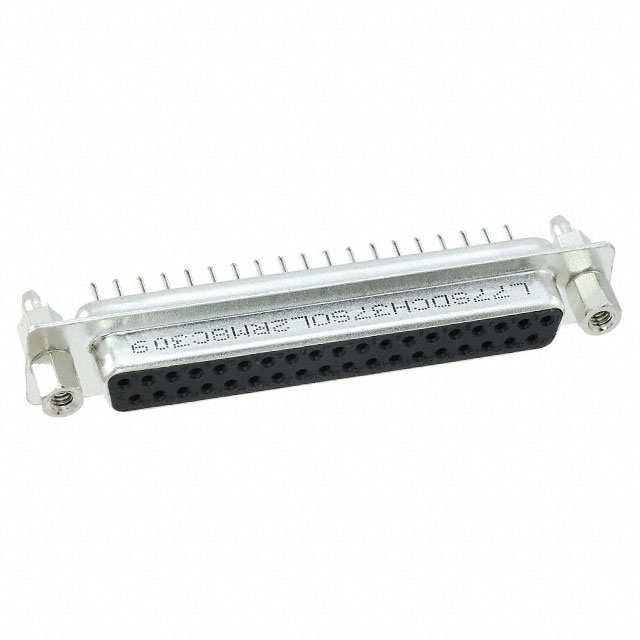

| Description | CONN D-SUB RCPT 37POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23150 pcs | Data sheet | |
| Wire Gauge | - | Voltage Rating | 250V |
| Termination | Solder | Shell Size, Connector Layout | 4 (DC, C) |
| Shell Material, Finish | Steel, Tin Plated | Series | SD |
| Packaging | Tray | Operating Temperature | -55°C ~ 155°C |
| Number of Rows | 2 | Number of Positions | 37 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic, Glass Filled | Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 37 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | Stamped |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
